Specification

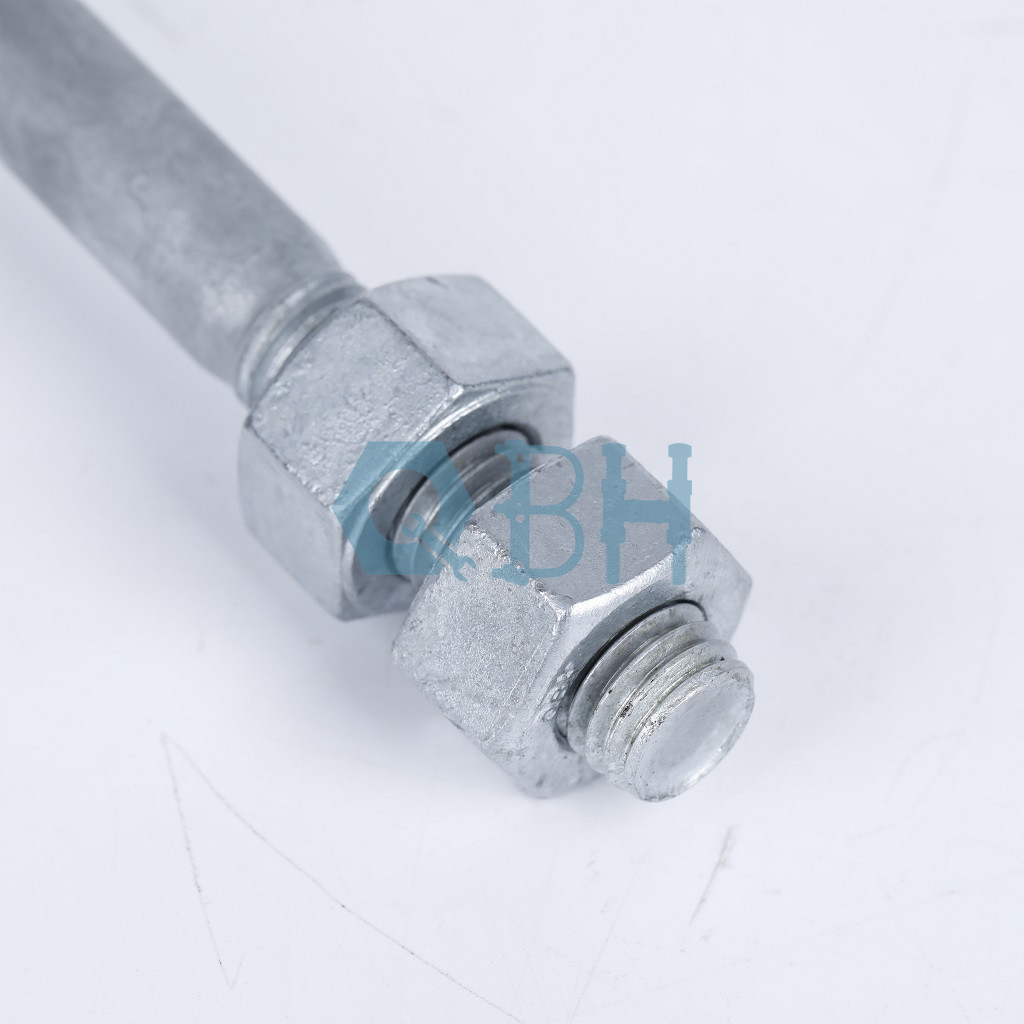

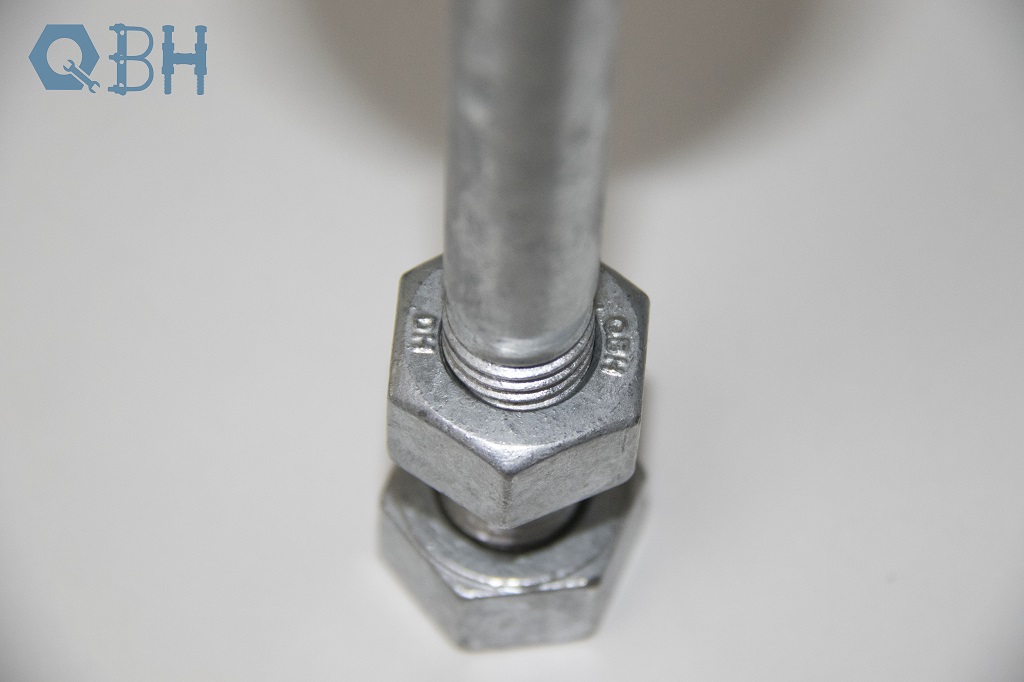

Step bolts are literally used as steps on steel communication and electrical transmission towers. These bolts are generally provided with two A194 grade 2H heavy hex nuts. One nut is tightened against the thread run out. The unthreaded shank, or step length, typically ranges from 6″ to 10″.
Manufacturing
QBH Bolt manufactures step bolts in 5/8″ diameter and 3/4″ diameter. Step bolts are high strength and are typically manufactured to ASTM specification A449
| Bolt Diameter | D | F | H |
| Body Diameter Max | Head Diameter | Head Height |
| 5⁄8 | 0.652 | 2"±1⁄8" | 1/2"±1⁄8" |
| 3⁄4 | 0.75 | 2"±1⁄8" | 1/2"±1⁄8" |
Process flow
Cold forging
Annealing treatment(if need) ➨ wiredrawing ➨ clod forging ➨ thread rolling ➨make heat treatment(if need) ➨ Finish ➨ Packing
Product Grade
Materials and Chemical compstition
1008
| CHEMICAL COMPOSI % |
| C | Si | Mn | P | S | Cr | Ni | Cu | Al |
| 0.06 | 0.06 | 0.33 | 0.013 | 0.003 | 0.01 | 0 | 0.01 | 0.028 |
1035
| CHEMICAL COMPOSI % |
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.34 | 0.13 | 0.73 | 0.012 | 0.002 | 0.02 | 0.01 | 0.02 |
10B21
| CHEMICAL COMPOSI % |
| C | Si | Mn | P | S | Cr | B |
| 0.2 | 0.04 | 0.81 | 0.017 | 0.007 | 0.017 | 0.0021 |
1045
| CHEMICAL COMPOSI % |
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.45 | 0.23 | 0.58 | 0.014 | 0.006 | 0.057 | 0.008 | 0.016 |
40CR
| CHEMICAL COMPOSI % |
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.4 | 0.21 | 0.54 | 0.015 | 0.008 | 0.95 | 0.02 | 0.02 |
35CRMO
| CHEMICAL COMPOSI % |
| C | Si | Mn | P | S | Cr | Ni | Cu | Mo |
| 0.35 | 0.22 | 0.59 | 0.01 | 0.003 | 0.93 | 0.01 | 0.01 | 0.21 |
42CRMO
| CHEMICAL COMPOSI % |
| C | Si | Mn | P | S | Cr | Ni | Cu | Mo |
| 0.42 | 0.27 | 0.92 | 0.013 | 0.004 | 1.01 | 0.03 | 0.04 | 0.2 |
Finish
PLAIN ZP YZP BLACK HDG DACROMET GEOMET CHROME NICKEL AND SO ON
PACKING
QBH BULK
20-25KG/CTN,36CTNS/PALLET
20-30KG/BAGS,36BAGS/PALLET
ONE TON/BOXES
50KG/ IRON DRUM,12 IRON DRUMS/PALLET
QBH SMALL PACKING
Packing in small boxes according to customer’s requirements
Packing in plastic bag according to customer’s requirements
QBH PALLET TYPE
SOLID WOOD FUMIGATION PALLET
EURO Pallet
THREE SPLINT PALLET
WOODEN BOX
The advantages of QBH
- QBH brand sales to the main quality assurance.
- Years of export trade management, excellent service, word-of-mouth guarantee.
- By working with TUV,escort for quality.
- Customization of non-standard parts can be made according to customer's requirements and drawings.
- For quality customers,we can provide a certain credit period.
Step bolts are used for a variety of applications, including steel communication, electrical transmission towers, tower reinforcement and a host of other fastening jobs. The best step bolts feature low carbon steel bodies and high strength and are excellent for use with heavy hex nuts. Browse through different-sized threads to sufficiently meet your fastening needs. Ensure sturdy assembly and tight fits with our step bolts.
Product Tags:
|
|

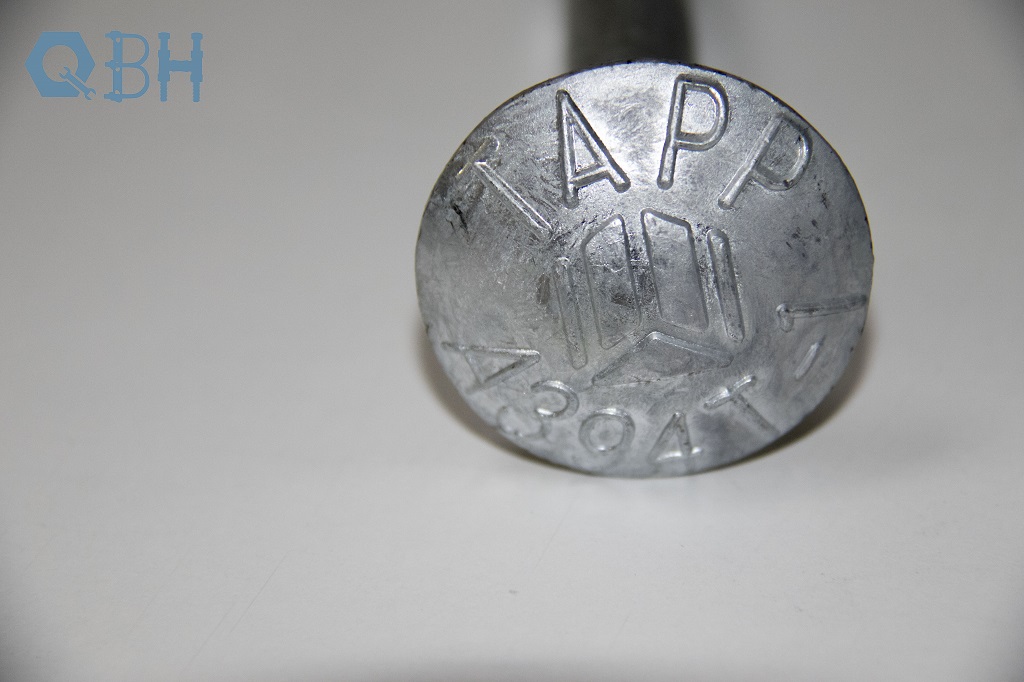

ANSI Step Round Head HDG PLAIN A394T Carbon Steel Bolt Images
|
